12V 50A 600W Ultra Thin Power Supply LRS-600-12 New Arrival

Short Description:

Huyssen Power’s LRS-600W provides an output voltage line of 5V,12V,15V, 24V, 27V, 36V and 48v. The high efficiency up to 92%, with the built-in long lifefan LRS-600 can work under -20~+65′℃ with full load. LRS-600 has the complete protection functionsand 5G anti-vibration capability; lt is complied with international safety regulations. LRS-600 series serves as a high price-to-performance power supply solution for various industrial applications.

In addition to our wide range of standard products, we also provide customized power supply services, please contact us directly!

Send email to us Download as PDF

Product Detail

Product Tags

Specifications:

OUTPUT
Model	LRS-600-27	LRS-600-5	LRS-600-12	LRS-600-15	LRS-600-24	LRS-600-36	LRS-600-48
DC Voltage	27V	5V	12V	15V	24V	36V	48V
Rated Current	22.2A	100A	50A	40A	25A	16.6A	12.5A
Current Range	0~22.2A	0~100A	0~50A	0~40A	0~25A	0~16.6A	0~12.5A
Rated Power	600W	500W	600W	600W	600W	600W	600W
Ripple & Noise	80mVp-p	100mVp-p	120mVp-p	150mVp-p	200mVp-p	300mVp-p	400mVp-p
Voltage Adj. Range	25.6~29.7V	4.75 ~ 5.5V	110.8~ 13.8V	13.8~18V	22.5~28.8V	32.4~39.6V	45~52.8V
Voltage Tolerance	±1.0%	±2.0%	±1.5%	±1.0%	±1.0%	±1.0%	±1.0%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±0.5%	±2.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%
Setup, Rise Time	1300ms, 50ms/230VAC 1300ms, 50ms/115VAC at full load
Hold Up Time	16ms/230VAC 12ms/115VAC at full load
INTPUT
Voltage Range	90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC (switch on 230VAC)
Frequency Range	47 ~ 63Hz
Efficiency	90%	83.50%	86%	87%	88%	90%	92%
AC Current	12A/115VAC 7.5A/230VAC
Inrush Current	35A/115VAC 60A/230VAC
Leakage Current	<2mA / 240VAC
PROTECTION
Over Load	110 ~ 140% rated output power
Over Load	Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage	3.8~4.45V	5.75~6.75V	13.8 ~ 16.2V	18~21V	28.8 ~ 33.6V	41.4~46.8V	55.2~ 64.8V
Over Voltage	Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over temperature	Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
Working Temp.	-20 ~ +65℃ (Refer to “derating curve”)
Working Humidity	20 ~ 90% RH non-condensing
Storage Temp.,	-40 ~ +85℃, 10 ~ 95% RH
Temp. Coefficient	±0.03%/℃ (0 ~ 50℃)
Vibration	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY
Safety Standards	UL60950-1 approved
Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
OTHERS

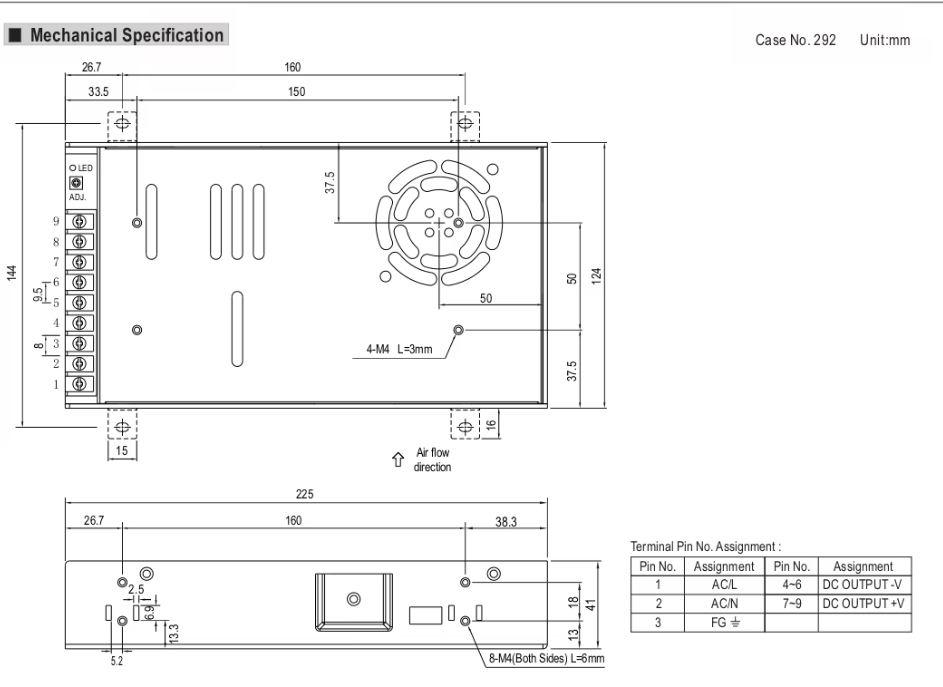

Dimension	22512441mm (LWH)
Weight	0.95Kg
Packing	20pcs/carton/ 20.5kg

Widely used in : PLC System, Billboards, LED Lighting ,Display screen, 3D Printer, CCTV camera, Laptop, Audio ,Telecommunication ,STB , Intelligent robot, Industrial control, equipment, etc.
