Factory making 48v 10a Power Supply - 1200W industrial equipment switching power supply – Huyssen Detail:

Features:

• AC input 90~132V or 175~264V

• Single output power 1200W

• Protections: Short circuit / Overload / Over voltage / over current

• Cooling by low noise double ball fan

• High efficiency, long life and high reliability

• All using 105°C long life electrolytic capacitors

• High operating temperature up to 70°C

• LED indicator for power on

• 100% full load burn-in test

• 2 years warranty

1200W industrial equipment switching power supply (1)

Specifications:

Model

HSJ-1200-12

HSJ-1200-15

HSJ-1200-24

HSJ-1200-48

DC  voltage 12V 15V 24V 48V
Rated output current 100A 80A 50A 25A
Output current range 0~100A 0~80A 0~50A 0~25A
DC power 1200W 1200W 1200W 1200W
Voltage adj.range ±10% ±10% ±10% ±10%
Voltage tolerance ±1% ±1% ±1% ±1%
Ripple and noise 120mVp-p 150mVp-p 240mVp-p 400mVp-p
Intet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±5% ±0.5% ±0.5% ±0.5%
AC voltage range 90~132VAC/170~264VAC 47~63Hz
Current 8A/230VAC
Efficiency 82% 84% 86% 88%
AC Inrush current 75A/230V
Leakage current <3.5mA/240VAC
Overload 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
Over-voltage 115%~135%
  10.6-13.8V 13.5-17V 21.5-27V 42-53V
High temperature   ERH3 ≥ 55°C Fan on,≤ 45°C Fan off,≥ 70°C,Cut down output(5~15V)
Setup rise hold up time 1.5s,50ms,20ms
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC
Isolation resistance Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms
Temperature coeffi cient  ±0.03%/°C (0~50°C )
Working temperature and humidity -10°C~+60°C,20~90%RH
Store temperature and humidity -20°C~+85°C,10~95%RH
Overall dimension 245*125*65mm
Weight 1.6Kg
CE EMC Authenticate EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
  EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
CE LVD Authenticate EN61347-1:2008T A1:2001 EN61347-2-13:2006
  EN60950-1:2006+A11:2009+A1:2010+A12:2001
ROHS Authenticate EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
  EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008

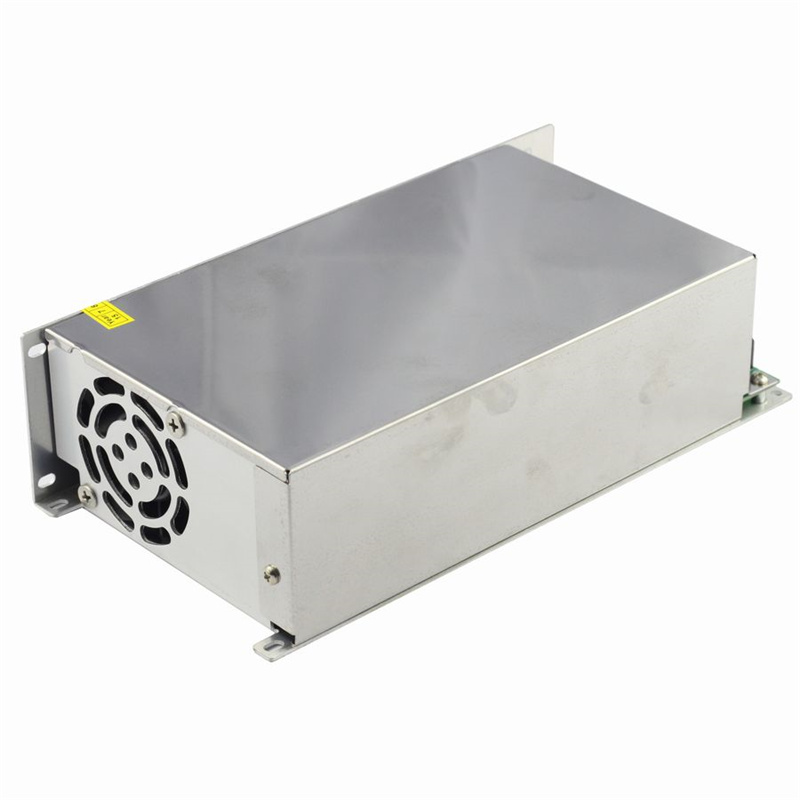

1200W industrial equipment switching power supply (2)

Product advantages:

1. Short circuit protection/overload protection/overvoltage protection/overcurrent protection which set to reduce AC input impact

2. Small volume, convenient installation and transportation

3. Low power consumption and high efficiency

4. Stable performance

5. Low failure rate

Applications:

Industrial automation, self-service terminal equipment, medical equipment, security monitoring, communication equipment, Roaming music, beauty equipment, test equipment,etc.
